TEND-X2

Land Mine Detector With Hybrid Sensor

SAMPLING & ANALYSIS

Sample Collection

Non-contact air aspiration (vapor sampling)

Threats Detected

Military & commercial explosives, TATP

Time to Alarm

Under 3 seconds

Clear-Down Time

Under 10 seconds

SYSTEM INTERFACE

Display & Alerts

Visible, audible & vibration alerts — 5″ LCD

POWER

Input Voltage

24V DC

Battery

Rechargeable Li-ion — up to 3 hours

Startup Time

Under 1 minute

PHYSICAL FEATURES

Dimensions (L x W x H)

1500 x 260 x 189 mm

Weight

Under 4.5 kg

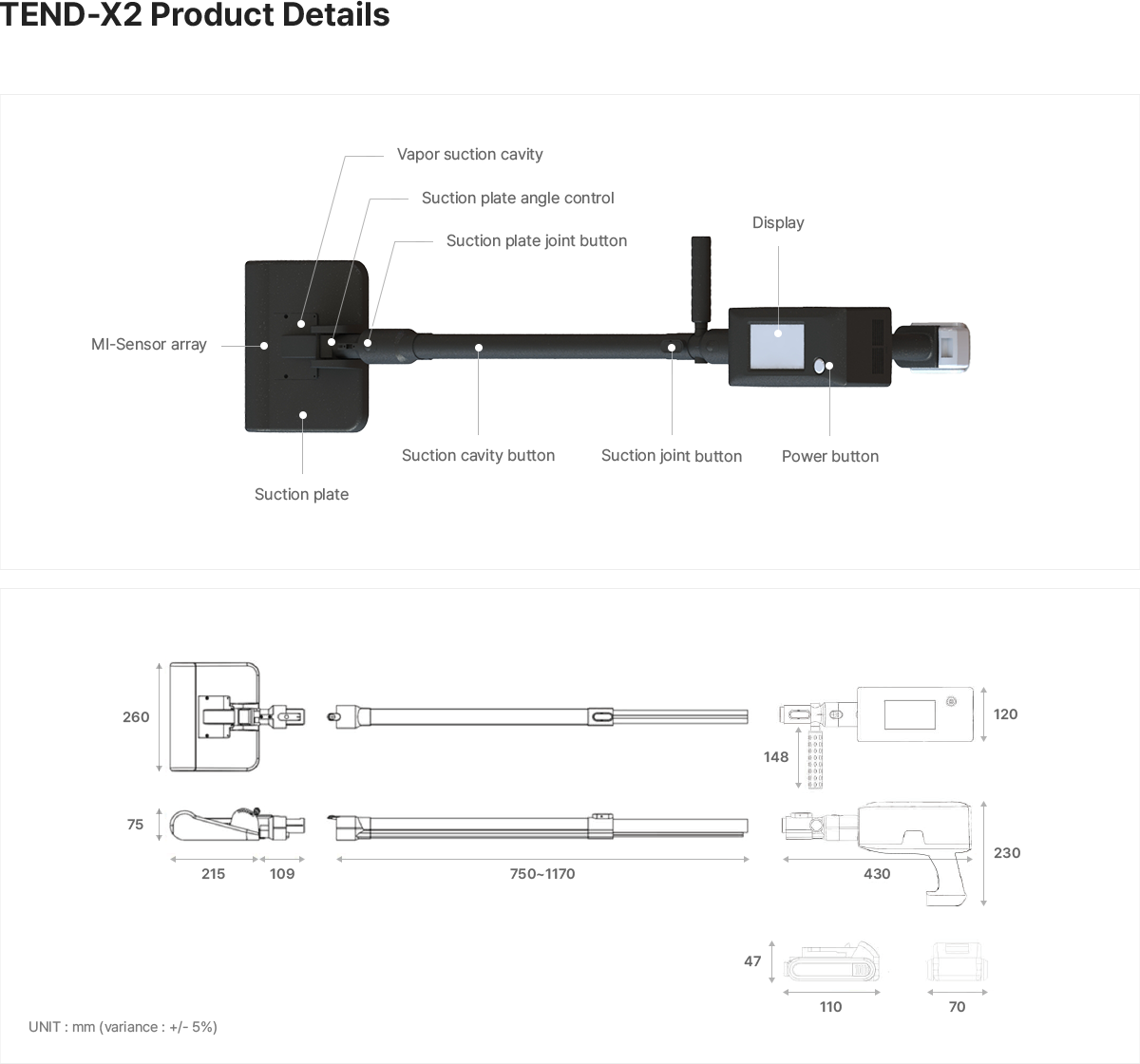

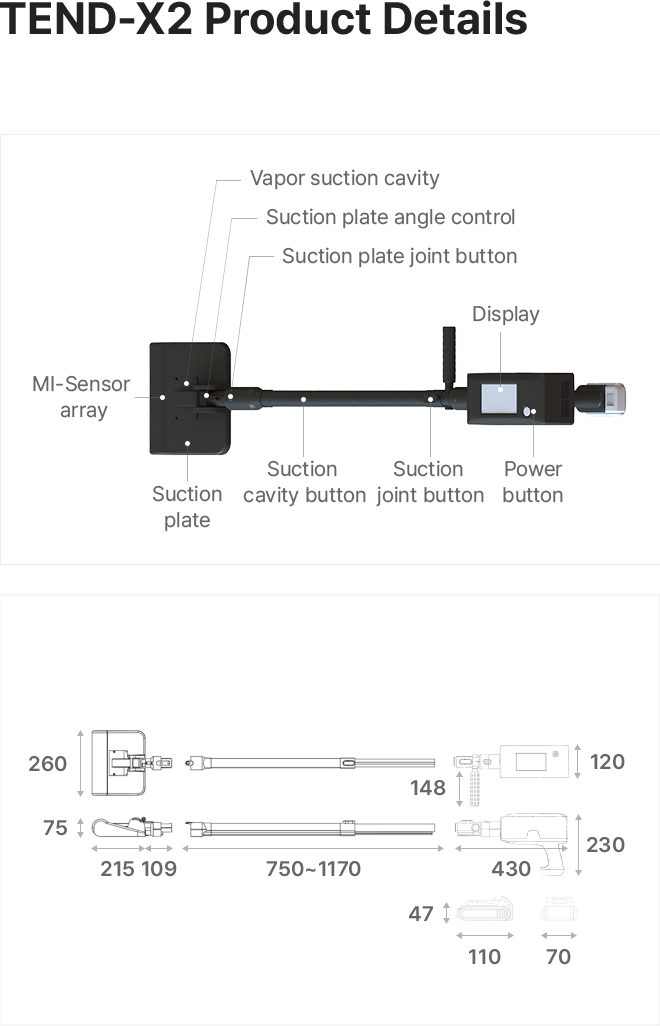

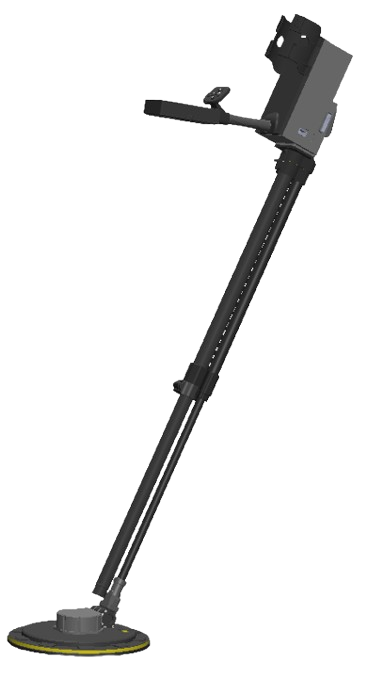

TEND-X2 Product Details

Armrest

Display

PI Sensor Module

Battery

Photochemical Sensor Module

Photochemical Sensor Flow Path

Interface Wiring

Friction Lock Coupling

Ground-Contact Skirt

PI Sensor Unit

Suction Plate

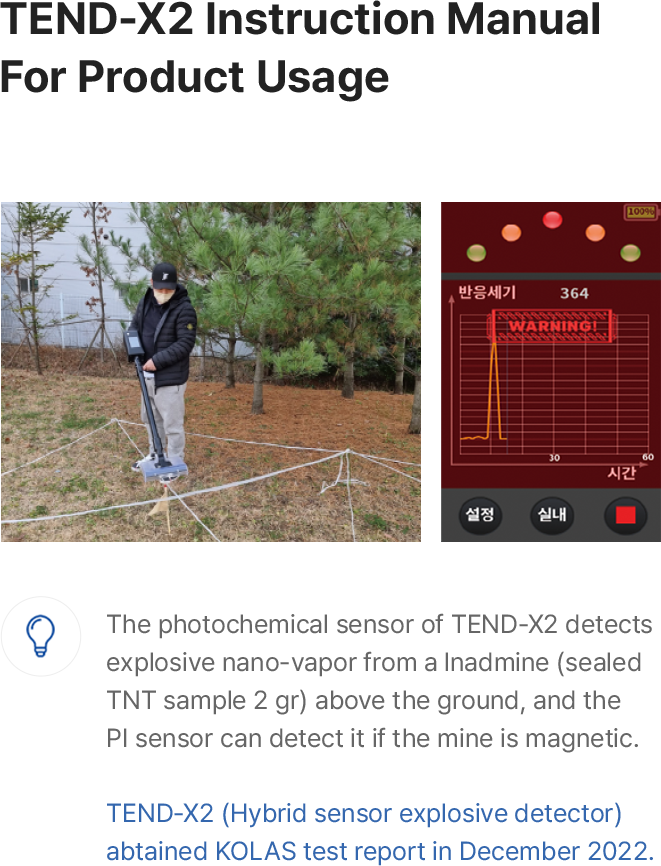

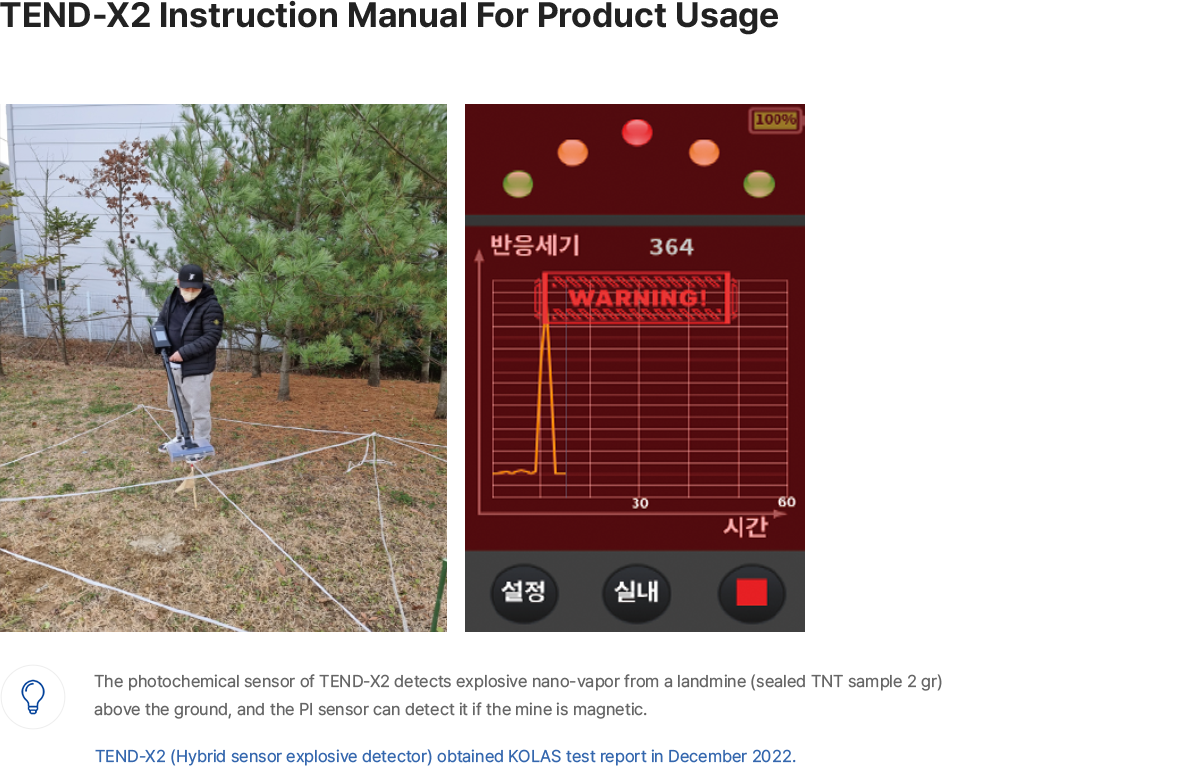

TEND-X2 Instruction Manual For Product Usage

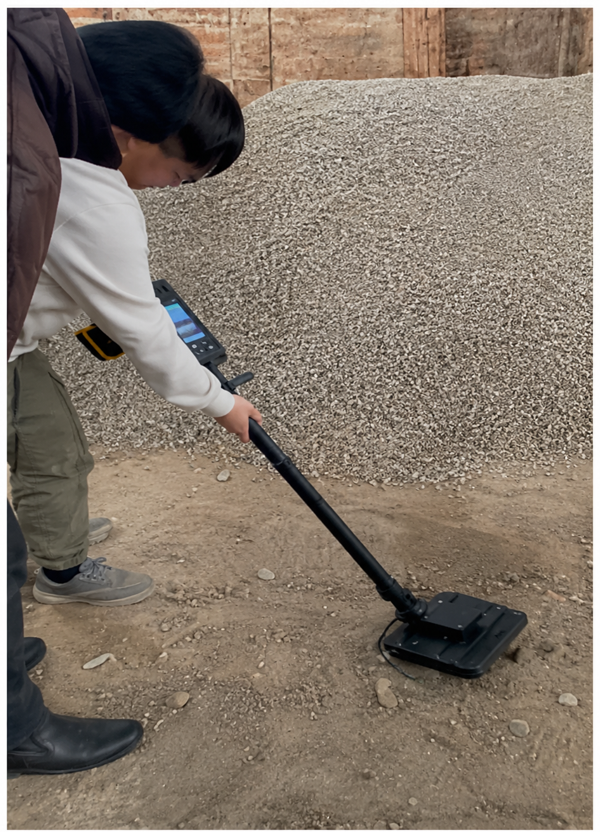

Field Detection Test

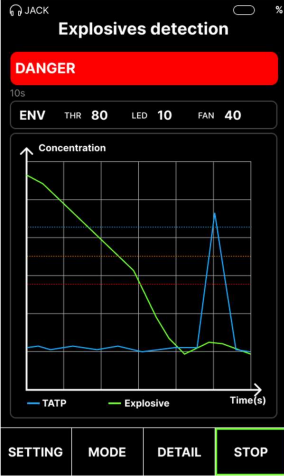

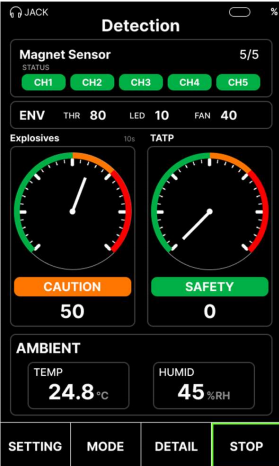

Real-Time Detection Display

TEND-X2's photochemical sensor detects explosive nano-vapor from a landmine (sealed TNT sample 2 gr) above the ground, and the PI sensor can detect it if the mine is magnetic.

TEND-X2 (Hybrid sensor explosive detector) obtained KOLAS test report in December 2022.
